# Flows
A **flow** is the durable boundary for one agent run — the unit your platform invokes and the runner executes. It matters because the flow is what you can later **replay**: every model call and tool call inside it is recorded at [checkpoint](/kitaru/core-concepts/checkpoints.md) boundaries, so a finished run can be reproduced faithfully and rerun with one input changed. A flow is a dynamic ZenML pipeline; it runs on the same stacks, server, and dashboard as your ZenML pipelines.
Everything inside the flow is tracked at checkpoint boundaries: persisted outputs, retry, replay, resume, and wait. Your harness (Pydantic AI, LangGraph, Claude Agent SDK, raw Python) lives inside the checkpoints. Your platform sits in front of the flow's invocation API. See [Harness, Runtime, Platform](/kitaru/core-concepts/harness-runtime-platform.md) for the bigger picture.

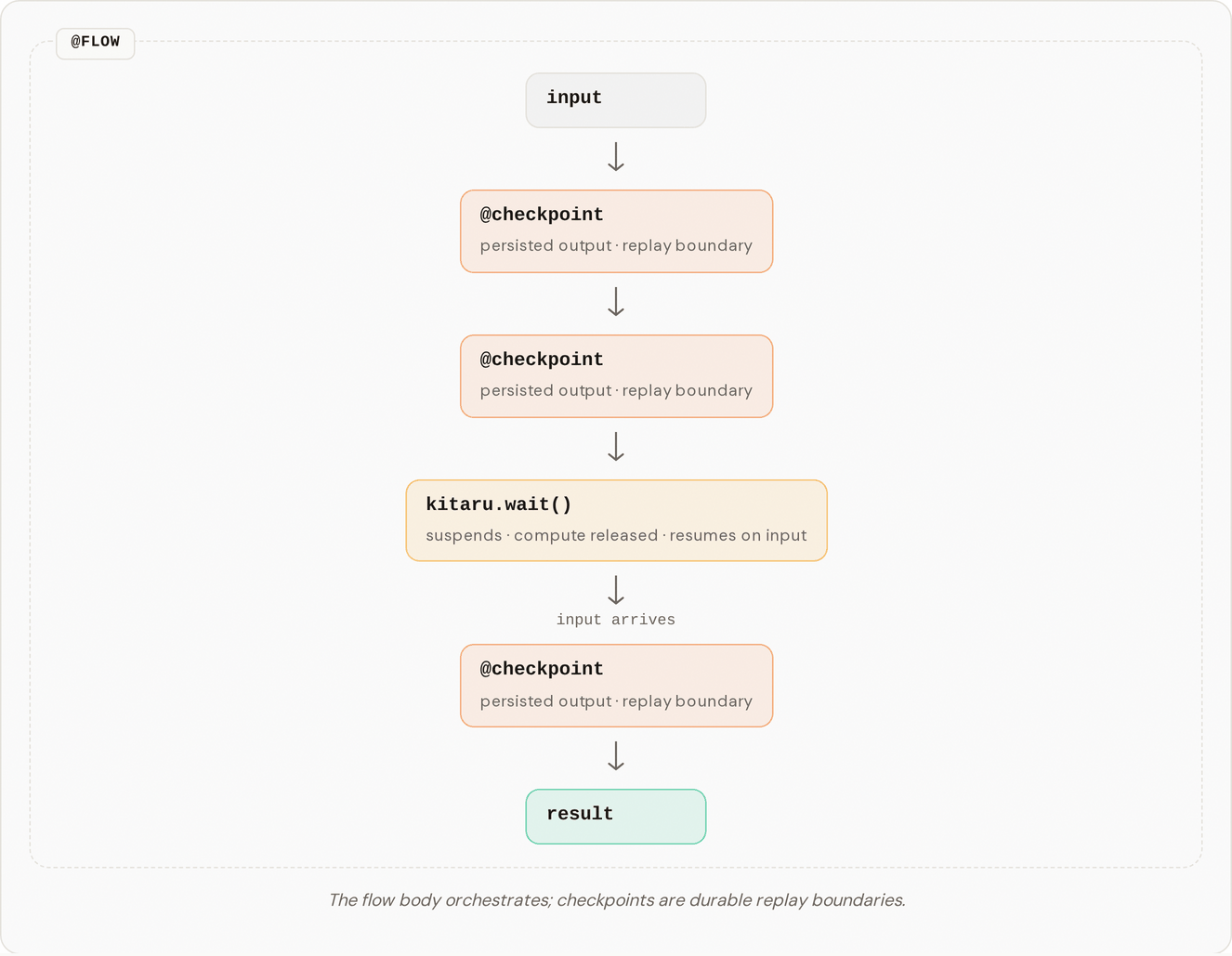

## The shape of a flow
The `@flow` boundary defines the durable execution. Checkpoints inside it are the persisted replay boundaries; the flow body is ordinary Python that orchestrates those checkpoints. Side effects in the flow body itself are not automatically durable — put anything that needs to survive a crash, be replayed, or be rolled back behind a `@checkpoint`.
The flow body is the orchestration layer. The checkpoints inside are the replay boundaries.
## Defining a flow
Decorate your orchestration function with `@flow`:
```python
from kitaru import flow
@flow
def my_agent(url: str) -> str:
data = fetch_data(url)
return process_data(data)
```
The decorated function becomes a callable wrapper object. Inside the flow body, you compose [checkpoints](/kitaru/core-concepts/checkpoints.md) — the units of work whose outputs are persisted.
## Running a flow
Use `.run()` to start an execution:
```python
handle = my_agent.run(url="https://example.com")
print(handle.exec_id) # unique execution identifier
# ... do other work ...
result = handle.wait() # block until finished
```
`.run()` submits the execution and immediately returns a `FlowHandle`. The flow runs in the background while your code continues. Call `handle.wait()` when you need the result: it waits for the execution to finish, then returns the persisted run output from the flow's `return` statement.
For a synchronous one-liner, chain `.wait()`:
```python
result = my_agent.run(url="https://example.com").wait()
```
To target a remote stack for one execution, pass `stack=`:
```python
handle = my_agent.run(url="https://example.com", stack="production")
```
## Why the boundary matters: replay
Because the flow recorded every checkpoint, you can re-execute a finished run from a checkpoint with `flow.replay(...)`. Keep the `exec_id` a run returns — that's the handle into replay.
```python
handle = my_agent.run(url="https://example.com")
result = handle.wait()
exec_id = handle.exec_id
# Faithful rerun with no change = the control/baseline.
baseline = my_agent.replay(exec_id, at="fetch_data")
# Replay again with one flow input changed (a different model).
variant = my_agent.replay(
exec_id,
at="fetch_data",
flow_overrides={"model": "claude-opus-4-8"},
)
```
`at` selects the checkpoint to re-execute from. `flow_overrides` changes the flow's **inputs** for the replay run (for example `model` or `prompt_profile`). Because the baseline reproduces the original run, a diff between baseline and variant isolates your change rather than replay noise. This re-executes the real run with one input swapped — it is not re-scoring stored outputs like an eval.
See [Replay and Overrides](/kitaru/guides/replay-and-overrides.md) for selector rules, checkpoint-level overrides, and the CLI/MCP entry points.
## Deploying and invoking flows
Use `.run()` when the current source process is starting a flow directly. Use `.deploy()` when you want to save a reusable, versioned flow entrypoint that other processes can invoke later.
```python
# Producer side: create a reusable deployment version.
my_agent.deploy(url="https://example.com")
# Consumer side: start a new execution from the deployed default route.
handle = my_agent.invoke(url="https://example.com")
```
`.invoke()` is the remote invocation verb for deployed flows. If you do not pass `version=` or `tag=`, it invokes the reserved `default` tag. To pin a specific version, pass `version=2`; to route through a named tag, pass `tag="stable"`.
See [Deployments](/kitaru/core-concepts/deployments.md) for auto-versioning, tag semantics, auth context, and worked producer/consumer examples.
## FlowHandle
A `FlowHandle` is returned by `.run()`. It gives you access to the running execution:
| Property / Method | What it does |
| ----------------- | --------------------------------------------------------------------------------- |
| `handle.exec_id` | The unique execution identifier (a string you can store or log) |
| `handle.status` | Current execution status (refreshed on each access) |
| `handle.wait()` | Block until the execution finishes, then return the persisted run output |
| `handle.get()` | Return the persisted run output immediately if finished, otherwise raise an error |
{% hint style="info" %}
`handle.get()` does **not** wait. If the execution is still running, it raises a `KitaruStateError`. Use `handle.wait()` when you want to block. For flows that explicitly return a value, both methods return the saved run output. For flows that do not return a value, inspect the persisted artifacts instead.
{% endhint %}
### How errors surface
If the flow execution fails, `handle.wait()` raises a typed `KitaruExecutionError` (or a more specific subclass) with the execution ID, final status, and the failure origin attached:
```python
import kitaru
try:
result = my_agent.run(url="bad-input").wait()
except kitaru.KitaruExecutionError as exc:
print(exc.exec_id, exc.status, exc.failure_origin)
```
## Runtime options
You can configure execution behavior at the decorator level (defaults) or override per-run via `.run()`:
```python
from kitaru import flow
@flow(retries=2, cache=False)
def my_agent(url: str) -> str:
...
# Override at call time
handle = my_agent.run(url="https://example.com", retries=3, cache=True)
```
| Option | Default | What it controls |
| --------- | ------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| `retries` | `0` | Number of automatic retries on failure |
| `cache` | `True` | Whether checkpointed outputs can be reused from previous runs. Set `False` to disable. |
| `stack` | `None` | Target execution environment for this run (overrides the active stack default) |
| `image` | `None` | Container image for remote execution (string, mapping, or settings object). Supports `base_image`, `requirements`, `environment`, `apt_packages`, `replicate_local_python_environment`, and `dockerfile`. |
Per-run values override decorator defaults. If you don't pass an override, the decorator default applies.
For `stack`, the full precedence chain is:
1. `.run(..., stack="...")`
2. `@flow(stack="...")`
3. `kitaru.configure(stack="...")`
4. `KITARU_STACK`
5. `[tool.kitaru].stack` in `pyproject.toml`
6. active stack selected via `kitaru stack use ...`
When a higher layer supplies `stack`, Kitaru binds that stack only for the submission of that execution and then restores the previous active stack. That override does **not** permanently switch your default stack.
## Run, then deploy
`.run()` starts an ad-hoc execution from the current process. It's the right loop for iteration and for calls made from your own code.
For production, a flow is **deployed**: `.deploy()` captures an immutable versioned snapshot that consumers invoke by flow name. Tags route traffic between versions (`default` is the tag your platform normally targets), so you can roll a new version out without changing the invocation surface. Auth is workspace-scoped; there are no per-deployment tokens to rotate.
```python
# Ad-hoc run from the current process
handle = my_agent.run(url="https://example.com")
# Deploy an immutable snapshot (new version each call).
# Parameterized flows take representative deployment-time inputs;
# consumers can override them at invocation time.
my_agent.deploy(url="https://example.com")
# Consumers that have the flow imported can invoke by attribute
handle = my_agent.invoke(url="https://example.com")
# Or invoke source-free by flow name (from Python, CLI, MCP, or HTTP)
from kitaru import KitaruClient
handle = KitaruClient().deployments.invoke(
flow="my_agent",
inputs={"url": "https://example.com"},
)
```
## Rules to know
* **Flow functions should compose checkpoints.** The flow body is the orchestration layer — heavy work belongs in [checkpoints](/kitaru/core-concepts/checkpoints.md).
* **Use `.run()` to start flows directly from source.** Direct calls (`my_agent(...)`) are not supported and raise `KitaruUsageError`. Use `my_agent.run(...)` for source-backed executions, or `.invoke(...)` for deployment-backed executions.
* **Retries must be non-negative.** Passing a negative `retries` value raises a `KitaruUsageError`.
## Next steps
* Learn how to break work into durable units with [Checkpoints](/kitaru/core-concepts/checkpoints.md)
* Attach structured data to your executions with [Logging and Metadata](/kitaru/core-concepts/logging.md)
---
